Problem Solving With Python: Program 1

The problem statement:

Program 0 provided a solution to the problem statement but it is an inefficient way to salve it. The solution required us to perform repetitious work. For that problem we only had to display the numbers from 4 to 9 along with its square. Now imagine if the problem required us to display numbers, along with their square, from 4 to 79. Our solution with be unnecessarily long and take an unacceptable amount of time to complete.

The task, just like program 0, is to write a Python program that displays a list of numbers from 4 to 9. Next to each number, the program will also display its square. But unlike program zero we are expected to write program 1 using less code such that we minimize as much as possible the repetitious work.

The following is the expected approximate output of program 1:

    4 16
    5 25
    6 36
    7 49
    8 64
    9 81

The Solution:

def program_1():
    for number in range(4, 10):
        print(number, number * number)


if __name__ == '__main__':
    program_1()

Program 1 introduces a powerful programming feature called a for loop, that allowed us to write a concise solution to this problem.

Why is it called a for loop?
It's called this because for each member in a given list of items, the code indented under a for loop will be looped over and executed a number of times that is equal to the number of items in the given list. In our solution, the number of members in the given list of items is 10 - 4 = 6. Hence, our for loop executed our indented code, or nested code, exactly six times.

What is this range(..) function?
This range function creates an object that produces a sequence of integers from the start value of 4 to the stop value of 10 minus 1. That is, given the start value of 4 and the stop value of 10 the following sequence of integers is generated for the for loop to consume. 4, 5, 6, 7, 8 and 9. Note that the last value of 10 is not included in the sequence. If for example we wanted modify the code to start at 2 and end at 10 we would call the range function as follows. 11 - 2 = 9 for loops would be executed.

range(2, 11)

 Page with links to the entire series can be found here

Are you having any issues running or understanding the program? Please, add a comment explaining where you are stuck or where the tutorial is not clear so we can improve it.

Problem Solving With Python: Program 0

The problem statement:

The task is to write a Python program that displays a list of numbers from 4 to 9. Next to each number, the program will also display its square. The square of a number is computed by multiplying it with itself like so. 4 x 4 = 16. Here, 16 is the square of 4.

The following is the expected approximate output of program 0:

    4 16
    5 25
    6 36
    7 49
    8 64
    9 81

The Solution:

def program_0():
    number = 4
    print(number, number * number)

    number = 5
    print(number, number * number)

    number = 6
    print(number, number * number)

    number = 7
    print(number, number * number)

    number = 8
    print(number, number * number)

    number = 9
    print(number, number * number)


if __name__ == '__main__':
    program_0()

How do I setup?

Follow the steps at this link to get started. When following the instructions assume that your machine does not already have Python installed so that you follow the instructions for downloading Python and making sure you install version 3.10. Ignore the details of the program in this example and instead focus on running the program in their example.

How do I run the program?

Running the code. If you followed the steps from the setup section than you should now how to create a file and run a Python program in Python. In your python project create a module (file) called program_0.py. Type the code in this file as shown and run the program. If your setup was successful then the Python interpreter should have run your program that generates some output within PyCharm.

What is a code interpreter?

The Python Interpreter is a program that reads and execute Python code. In order for the interpreter to be able to do its job, the program that we write must follow a set of rules. Code indentation is one of these rules. Violation if this or any programming rules will result in a program that does not execute or, even worse, a program that executes incorrectly.

What is a variable?

A variable is a name for a physical location within the computer that can reference either a single piece of data like a number or a character or data structures that can hold multiple pieces of data. In our program we define the variable number that holds a single number. As the name implies, a variable can be changes by our program as it is running. Our program first defines this variable number by assigning the number 4 to it. Our program then changes the value that our variable is referencing with the use of the assignment operator.

Why use a variable at all?

Variables will allow us to write code that is concise, descriptive and reusable. The importance of these ideas will become more evident as we write programs with increasing complexity.

What is an assignment operator?

The assignment operator, denoted by =, is used to assign a value to variables. The following is a general form of an Assignment Statement.

variable_name = expression


What are Python Keywords?

Python keywords are reserved words that should not be used except for its explicitly defined usage. The keywords used in this program are the following.

  1. def is used to define the start of a function.
  2. if is used to test a condition. In our case it is used to test if the variable __name__ is equal to the string __main__. If it is then the next indented lines are executed by the interpreter. In our case, our function, program_0() is executed, resulting in an output that is generated by our program.


What is a function?

A function is a building block of a program; they are used to define code that is reusable and can be called anywhere within your program. Note how we first write our display logic in def program_0()... then further down we call it. Suppose we wanted to display the same values again immediately below the first program output. This can be accomplished in one of two ways. We can either modify our program to display the values twice or simply call our program immediately following the first call like so.

if __name__ == '__main__':
    program_0()
    program_0()


Hence, code reuse!

What is a built-in function?

Python is shipped with many standard built in functions. Our program the built-in print(...) function to display our values to the monitor. We can pass any number of variables to the print function with the use of a comma. The print function will display the variables passed to it by inserting a single space between them. The print function will also add to the end a newline character so that the display system will print the next values on a new line.

Page with links to the entire series can be found here

Are you having any issues running or understanding the program? Please, add a comment explaining where you are stuck or where the tutorial is not clear so we can improve it.

Wikileaks Vault 7: CIA Tips for Git Workflow

Wikileaks has begun dumping a large number of files on the CIA's hacking tools. The dump is called Vault 7. It is a goldmine, not only for information about the CIA's activities, but also for information on things like how to set up a development environment or properly use Git in your everyday programming workflow. Here are a couple highlights from some cursory searches of the document dump:

CIA Git Tutorials

CIA Vim Tutorials

CIA Setting Up a Development Environment

Tutorial: Introduction to SpriteKit in Swift

(Image courtesy developer.apple.com)
This is an introduction to a series of SpriteKit tutorials written in the Swift programming language. (We will release the entire series over the course of several weeks). At the top level, this tutorial will be broken up into seven sections. Each section will be comprised of several lessons. For our first section we will focus on the fundamental techniques for working with SpriteKit content. Since sprites are the fundamental building blocks used to create the majority of a games scene’s content we will look at that next. We will then learn how to apply actions to sprites to be able to move around in a game scene. In section four we will expand on the basic concepts just learned by delving deeper into the concept of a node tree and ways to build our game scenes. We will then look at advanced scene processing techniques. In the sixth section we will learn how to simulate physics on the bodies within our scenes. And lastly we will discuss SpriteKit best practices.

PyGest: A Python tkinter Tutorial, Conclusion

This is the final article in our Python tkinter tutorial series. If you've been following along from the beginning, you should now have a desktop file hashing application with a fully functioning graphical user interface!  Here is our final product:


PyGest: A Python Tkinter Tutorial, Part 5

This is part five in our Python tkinter tutorial series, in which we are building a simple GUI app to process and check file hash digests. In the previous two articles (part 3 and part 4), we configured the input and output widgets for our app. In this post, we're going to build out our app's two primary buttons and hook them into the appropriate input and output fields.


PyGest: A Python Tkinter Tutorial, Part 4

This article is part four in our ongoing Python tkinter tutorial series. When we left off in part three, we had just completed configuring the inputs for our interface, which included text entry, label and button widgets. We'll now move on to the widgets necessary for conveying the application's two outputs: 1) the hash digest value of the file input supplied by the user, and 2) a message indicating whether the file hash generated by the app matches the optional hash value that may be supplied by the user.



PyGest: A Python Tkinter Tutorial, Part 3

This is part three in our Python tkinter tutorial series on building a simple GUI app to compute and check file hash values. In part two, we added a banner header to our bare bones view by inserting a tkinter label into our app's content frame. In this segment, we will build out our app's various input widgets. Recall our mockup design:


PyGest: A Python Tkinter Tutorial, Part 2

This is part two in our Python tkinter tutorial series. In part one, we defined the basic structure of our script, set up a logger, and got the root window of our GUI application up and running in the app's single view class. In the present article, we'll begin work on the main view in earnest. We will configure the tkinter root object, create and configure a single frame to hold all the app's contents, and then create our app's title banner. First, however, we should discuss how to structure the layout of a Python tkinter application, and our strategy for doing so in the present project.

PyGest: A Python Tkinter Tutorial, Part 1

This is part one in our tutorial series on building a simple Python GUI app with tkinter. You can find the introductory article to the series at the link. In this article, we'll get things up and running by filling out the basic structure for our Python script and the application itself. We'll add a top level comment, define the necessary imports, set up our main name space, define the main function, and then configure a logger to aid in sanity checking . . .

PyGest: A Python tkinter Tutorial, Introduction

In this tutorial series, we are going to build a simple file hashing application using the Python standard library's interface to the TK GUI toolkit: tkinter. One can find some resistance to using tkinter in the Python community. However, my interest in tkinter was recently rekindled after watching "Tinkering with Tkinter", a presentation by Russel Keith-Magee, in which the Django developer makes a strong case for revisiting this often overlooked and under-appreciated component of the Python standard library . . .

Swift Networking Tutorial Index: Building a Swift App to Query a Custom API

Our tutorial series on networking in Swift provides a detailed, practical overview of the topic from the back-end API to the end user application. The series is broken up into two major parts. In the first part, we build a custom web service in PHP which provides access to a RESTful API that serves inventory content from a hypothetical plumbing supply shop. Knowing how to create a simple API is useful for delivering mock content during your app development cycle, and provides application developers with more knowledge on precisely how such a service is constructed. In the second part, we use table views to create a Swift application to query our custom API and deliver the contents of the service to the end user of the application. Use the index below to navigate the tutorial.

Introduction
Introduction and Overview: From the Back End API to the End User Application

The Web API
Building a RESTful API in PHP, Part 1
Building a RESTful API in PHP, Part 2

The Swift Client App
Networking in Swift: Building the Swift Client, Part 1
Networking in Swift: Building the Swift Client, Part 2
Networking in Swift: Building the Swift Client, Part 3
Networking in Swift: Building the Swift Client, Part 4
Networking in Swift: Building the Swift Client, Part 5



This tutorial was authored by Stefan Agapie, a Senior iOS Software Engineer, and adapted for the present piece.

Networking in Swift: Building the Swift Client, Part 3

This is part three in the tutorial segment on building a Swift client application to query a RESTful web API, from our series of articles on networking in Swift. In the first segment, we created a custom RESTful API in PHP that serves up the inventory of our hypothetical plumbing supply shop.

In this segment, we have been building a Swift client which queries this API and delivers that inventory content to our end user. In part one, we got our Swift application up and running. In part two of building the Swift client, we created our basic data model, hooked up the segues to our inventory views, and successfully handled raw responses from the server by printing them to the Xcode console.

In the present article, we'll create model objects from the JSON dictionary returned by the server (at the end of part two), and display our inventory item lists in their respective table view controllers.

Model Objects
When we left off in part two, we were filling out the requestInventory method in our PlumbingSupplyInventoryTableViewController. Currently, that method simply prints the returned JSON dictionary to the Xcode console. We'll now create model objects from this dictionary by factoring out the relevant code from the requestInventory method and placing them in a separate method to handle this logic. In your PlumbingSupplyInventoryTableViewController file, add the following method below the requestInventory function that we were working on in the previous article:

Notice that in the last line we do not print out the jsonResult dictionary object but instead wrap it in an array and return it to the caller. In the requestInventory method, replace the three lines of code we factored out into the new inventoryItems method with the following two lines of code:

If you run the app and select one of the two inventory item categories, you should see the same response as before in your console, but wrapped in an array. We'll now refine the raw JSON data. Replace the return [jsonResult] line of code in the inventoryItems method with the following snippet:


Let's take a closer look at this. The first line gets the raw data dictionary object from the JSON results container. The second line defines a container that will hold model objects that are built from the raw data dictionary objects from line one. Inside the for loop we iterate through the raw data dictionary objects and build an array of refined data objects. And in our last line we simply return the array of model objects.

If you now run the app again, you'll see the difference in the Xcode console output, which now returns a tidy array mapping individual inventory items to their memory locations. Let's display these inventory lists in their respective views.

Displaying Our Inventory Item List
Return to the main storyboard. Locate and select one of the table view cells from our PlumbingSupplyInventoryTableViewController scene. In the Attributes Inspector, locate the Style drop down menu and select the option “Basic.” Locate the Identifier field and type in “Cell”. Finally, locate the Accessory drop down menu and select the option “Disclosure Indicator.” Do the same for the other cell as well.

Now open the file PlumbingSupplyInventoryTableViewController.swift file. Inside and toward the top of the class, add the following property:

This data source property will supply our dynamic table view cells with the information to display on screen. The number of items in our data source will always be equal to the number of items from a single plumbing supply inventory category. In the same class  replace the default boilerplate code for the three methods below with the following snippets:

These data source methods are called by the system to query this controller on how to proceed when building our table view and displaying content within it. In the first method we simply tell the system that our table view will display only one section. The second method says that the number of items in our single table view section is equal to the number of items in our data source.

The last method does several things to build a table view cell. In the first line (line 12 in the snippet above) it dequeues a reusable cell. When scrolling a table view, table view cells that scroll off the screen are placed on a queue for reuse and cells that scroll onto the screen are removed from this queue and reused. This process helps speed up table view performance which makes possible the smooth table view scrolling with which we are all familiar. On the second line (line 13) we utilize the indexPath object to get the row number of the cell that is next to become visible in our table view; the row number corresponds to a unique item in our data source. There is a one-to-one correspondence between the cells and the items in our data source. The following line gets the name of an inventory item and assigns it to the label of the next cell to become visible. The last line simply returns that cell.

Let's jump back to where we defined our requestInventory function. In this method, replace this line of code that reads println(inventoryItems) with the following snippet:

What's going on here? In line 1, we capture a reference to the data source that is received from the self.inventoryItems(data) method call. The next segment is a C level API call to a dispatch system, on a queue of our choice, which executes code that we place inside its block/closure. The code inside the closure performs updates to our UI elements.

According to Apple's documentation, any code that updates UI elements must be executed on the main queue—which is what we do. The first line within the closure asks our table view to reload since we have assigned items to its data source. The second line hides the web activity indicator spinner, since our request for web content has terminated. Run the app and select on of the two plumbing supply categories. Once the content downloads you should see a table view similar to the one depicted below:


Success! We've successfully displayed the list of inventory items returned by the web API. Notice, however, that we did not use the callback responseHandler( error: nil, items: nil) closure but instead updated our UI in the method from above. We leave this as an exercise for the reader to implement. If you are not sure how to go about implementing this, don't worry, we wrote another method on a different controller that uses the closure to update its UI elements after an update. We do this towards the end of this tutorial.

This project can be found on GitHub.

We're almost done! In the next article, we'll display thumbnail images alongside each of the items in our inventory list above. And then in the final tutorial, we'll build our item description scene for each item in the inventory that displays the full image along with the extended description supplied by our API.

Index
Introduction
Introduction and Overview: From the Back End API to the End User Application

The Web API
Building a RESTful API in PHP, Part 1
Building a RESTful API in PHP, Part 2

The Swift Client App
Networking in Swift: Building the Swift Client, Part 1
Networking in Swift: Building the Swift Client, Part 2
Networking in Swift: Building the Swift Client, Part 3
Networking in Swift: Building the Swift Client, Part 4
Networking in Swift: Building the Swift Client, Part 5


This tutorial was authored by Stefan Agapie, a Senior iOS Software Engineer, and adapted for the present piece.

Networking in Swift: Building the Swift Client, Part 2

In the first part of this tutorial segment on networking in Swift, we got our client app up and running with a simple table view controller listing the two inventories supplied by the RESTful API we created in the initial segment of the series. In the present article, we will: 1) set up our data model, 2) create the segues to our inventory views, and 3) process raw responses from the server asynchronously.

Building the Item Data Model
Our code looks better and becomes easier to manage when we build objects that represent or model the data items that we receive from our web service. To this end, we'll create a file for our individual plumbing supply items using a Cocoa Touch Class template, and then fill it out with the necessary parameters supplied by the API. Open up your Xcode project if you haven't already. In the Xcode Project Navigator panel, right click on the top most group folder. From the menu options that appear, select new file.



You will be presented with a set of options similar to this:


Under iOS, select Source, followed by Cocoa Touch Class, then click Next. Under the secondary menu options: next to the 'Class' field type in PlumbingSupplyItem. For the next field, 'Subclass of', type NSObject, do not create a XIB file (uncheck box), and for the Language portion ensure that Swift is selected:


Click 'Next'. When prompted to select a destination, place the file alongside the other project files. If the file is not automatically loaded into Xcode, then open it from the Project Navigator panel. Now place the following code within the PlumbingSupplyItem class implementation:

As you can see, this code block models the data item passed from the RESTful API we built in the previous segment of this tutorial series, initializing an item id, an item name, an associated image and an item description. It doesn't get much simpler than this.

Segues to the Inventory
With our data model in place, we'll now create our controller class for our inventory, using a table view. This will allow us to mediate between the two inventory table views upon a touch event by the end user.

In the same manner that we created the PlumbingSupplyItem model file, create a new file named PlumbingSupplyInventoryTableViewController using a Cocoa Touch template, and have this file subclass a UITableViewController. From the Object Library, located in the Utilities panel, drag and drop two UITableViewControllers into the main storyboard as depicted below:

Select one of the two view controllers that were just dropped in. Now, in the Identity Inspector, located in the Utilities panel, find the Class field, and type in the name of the class we just created (i.e. PlumbingSupplyInventoryTableViewController) as shown below:

Do the same for the other controller as well, since we are building two separate views of the same kind of object, i.e. items in each of our two inventories.

Note that when you are zoomed out in a storyboard, you can only make selections on the view controllers themselves. To make selections on a controller's internal elements, you have to zoom in. Armed with that information, go ahead and select the cell with the label 'Plumbing Tools'. While holding down the Control key and the left mouse button, drag your mouse over to the top right most view controller and release. During this motion you should see a blue line stretch from our starting location, the table view cell, to our final destination, the view controller.


Upon releasing your mouse button over the controller, a menu will appear. Select the top option that reads: Selection Segue->Show.


Now repeat the same steps for the other cell as well. Your storyboard should look like the following:

What did we just accomplished? We have set up view controller view transition objects known as segues. These segues will respond to a user's touch of a cell. When a cell is pressed, the associated segue will transition to the view controller that it points to.

Preparing Our Segue
Since we will be using a single view controller to display the different inventories of plumbing supplies from the two possible options, namely, Plumbing Tools and Copper Pipes and Fittings, we need to inform the destination view controller which cell was selected. The tip of a segue arrow is said to point to the destination view controller and the tail of the arrow is said to originate from the source view controller. Create a file named PlumbingSupplyCategoriesTableViewController and have this file subclass a UITableViewController.

Now we'll hook it up on the story board. Select the source view controller, i.e. the controller with the two cells. In the Identity Inspector, located in the Utilities panel, where the field reads 'Class', type in the name of the file and class we just created: PlumbingSupplyCategoriesTableViewController. In the main storyboard, select the segue arrow that is associated with the cell labeled 'Plumbing Tools'. From the Attributes Inspector, located under the Utilities panel, locate the Identifier field and type in: plumbingTools.

Do the same for the other segue arrow, but this time provide the Identifier with the name from the title of the other inventory list: copperPipesAndFittings.

We're now going to jump back to our code files. In the PlumbingSupplyInventoryTableViewController.swift file, place the following code (in line 3 below) immediately after the class definition, like so:

Now, over in the PlumbingSupplyCategoriesTableViewController.swift file, replace all the code inside the class PlumbingSupplyCategoriesTableViewController: UITableViewController { . . . } with the following snippet:


This is a system call method that is responsible for notifying the source view controller that a segue is about to be performed. The title that we set in the code above is to the destination table view controller that we segue to. On this destination controller we also set the plumbing inventory url endpoint so that the controller can load the content that was chosen by its corresponding table view cell. Our destination has enough information to load the entire inventory of the selected plumbing category.

Holding Pattern: Activity Indicator
Before we request a list of inventory items, it is customary to run an activity indicator to show the user that our app is in the process of getting some information to display. In the PlumbingSupplyInventoryTableViewController.swift file, below the line of code that reads var inventoryUrlEndpoint : String = "", enter the following line of code:

This line of code creates an instance of UIActivityIndicatorView and makes it private. Now we're going to fill it out inside the viewDidLoad method. In the same file, but inside the method override func viewDidLoad(), add the following lines:


Save all your files and run the application. Once it loads, segue to the two inventory table view controllers. You should see an activity indicator animation as shown here:

Requesting an Inventory
Inside the PlumbingSupplyInventoryTableViewController.swift file, immediately below the webActivityIndicator property, we'll now define another variable that holds a reference to a URL session object that will asynchronously handle our web request. Enter the following line there:
var urlSession = NSURLSession.sharedSession()
At the bottom of the same class, we now define a function that will perform the url session request, parse the request and send us back objects if the success was successful. Here's our first stab:

If you are new to Swift, this function might look rather cryptic. That's because it is! It was no easy task to get this right—a whole lot of Google engineering was required on our end. Lets break it down by parameter:

    'endPointURL : String'
        - 'endPointURL' is an arbitrarily chosen parameter name that we defined in order to identify this parameter, and the 'String' portion requires that the passed in object be of string type.

    'responseHandler'
        - 'responseHandler' is an arbitrarily chosen name for our closure, a.k.a block in Objective-C.

    'error : NSError?, items : Array<PlumbingSuppleyItem>?) → ()'
        - This portion defines a closure.
        - The 'error : NSError?' segment is again an arbitrarily chosen parameter name, and the 'NSError' portion requires that the passed in item be of NSError type.
        - The question mark (?) indicates that the passed in object is optional, meaning that a nil may be provided—in its absence we are required to pass in a none nil value NSError object.
        - 'items : Array<PlumbingSupplyItems>' indicates that the passed in object is a container that holds objects of PlumbingSupplyItem type.
        - The arrow followed by the parenthesis '→ ()' indicates that this closure returns no values. Instead, objects are passed through the closure's callback parameters.
        - The second arrow followed by parenthesis '→ ()' indicates that the function returns no values.
        - The arrow along with the parenthesis may be omitted for both the function and closure.

Okay, that was a mouthful, but what happens when the view appears on the screen? Let's define it. Right below the viewDidLoad method, we add the following code for our new viewDidAppear method:

This function will be called by the system when the view appears onto the screen. This is good spot to begin requesting inventory items. Notice that we are calling our previously defined requestInventory function. Let's revisit that function now. Replace all the existing code inside the requestInventory method implementation, with the following snippet:


Let's go through this line by line. Line 1 creates an NSURL object from the provided endPointURL string that is referenced by a constant named url; it is essentially a wrapper object for a string formatted URL. This NSURL object is required by our urlSession object that is on the next line of code.

On this line of code, i.e. line 2, we create what is known as a 'data task' for querying our web service. This call spawns an asynchronous operation that communicates with our PHP web service without blocking the main thread. Not blocking the main thread is highly desired if we want our user interface to continue to be responsive—this makes for a better end user experience. Once the communication with our web service completes, the completionHandler closure and all of our code that is contained within this closure is executed. The closure has three parameters: 1) the raw data that comes from our web service, 2) a response object containing the headers from our web service response, or 3) an error object if the request failed.

Line 4 prints the response object inside the Xcode console.

Line 6 is a call to a closure that we defined for our requestInventory function. The parameters provided are an error object if any, and a list of data objects for our inventory items. Currently, we only return nil values.

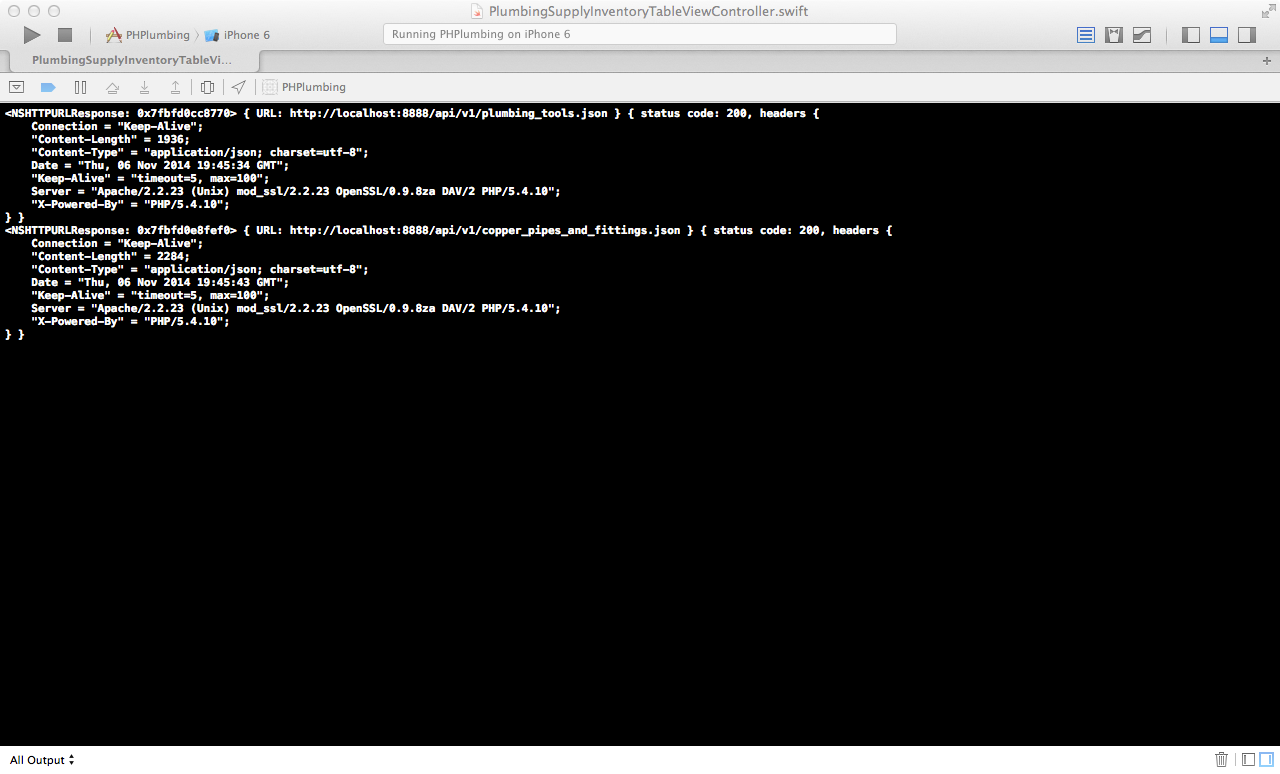

Run the application the select both Plumbing Tools and Copper Pipes and Fittings table view cells. You should see the response objects printed for both selections in your Xcode console. The responses in your Xcode console should look similar to this:


Success! Notice that the response object is of type NSHTTPURLResponse. This response object contains information about the requesting url, and the header fields from our web services. Notice the status code of 200; this means that request was completed without issue. You can also print the data object but in its raw form it will not make much sense—try it if you'd like. The communiqué between the host and client is comprised of two parts. The first part is known as the head or header and the second part is known as the body. A typical request or response will contain both of these parts (It's possible to just request the head of a web service response—Google to find out how). The real-world analogy that is often used to describe this is paper mail. The electricity bill, for example, is comprised of two parts as well. The first part is the envelope itself that contains information about its sender—the head. The second part is the contents of the envelope that contains information for the recipient—the body.

JSON Parsing
Now let's get our raw inventory. To do this, we take the response or body of the message and translate it into a container that we can readily read from. In the same function that we've been working on, replace the following line of code that prints out the response, (i.e. println(response), line 4 in the snippet above) with the following:

The first line of code creates a parse error pointer to an object of type NSError, or nil value. On line 2, we call the NSJSONSerialization class method JSONObjectWithData(. . .) and pass to it our raw data response from our web service along with the memory address of the pointer that we created on the first line.

This last method will convert our raw data into a mutable container of type NSDictionary. If the conversion process fails, then this method will assign an error object to the provided memory address with a description or nature of the failure.

The last line of code simply prints our newly created container to the console screen. Save the file then build and run the application. Navigate to one of the inventory endpoints from the table view. In the Xcode console, you should see a similar response to this:


This project can be found on GitHub.

Success! Our application is now querying our tools and supplies API, and returning the inventory response for each of the categories listed on our primary view controller. In the next article in the series, we'll create model objects and then display our inventory item list in our Swift client. Continue to part three on building the Swift client.

Index
Introduction
Introduction and Overview: From the Back End API to the End User Application

The Web API
Building a RESTful API in PHP, Part 1
Building a RESTful API in PHP, Part 2

The Swift Client App
Networking in Swift: Building the Swift Client, Part 1
Networking in Swift: Building the Swift Client, Part 2
Networking in Swift: Building the Swift Client, Part 3
Networking in Swift: Building the Swift Client, Part 4
Networking in Swift: Building the Swift Client, Part 5


This tutorial was authored by Stefan Agapie, a Senior iOS Software Engineer, and adapted for the present piece.

Networking in Swift: Building the Swift Client, Part 1

If you've been following along from the beginning of this tutorial series on networking in Swift, you're now running a local web server and have created a simple RESTful API in PHP that serves up the inventory for our hypothetical Super PHPlumbing Bros. project. In this segment of the series, we'll build the iOS Swift client to bring that content to our end user. In the present article, we'll start our Swift project from scratch and create a single view application using a table view controller that will serve as the primary interface to our inventory of plumbing tools and supplies.

In the Beginning . . .
Download and install the latest version of Xcode, if you haven't already, and fire it up. From the Xcode menu bar (or the Welcome screen) select File->New->Project. A window will appear with various options to choose from. In the left hand panel, under iOS, choose 'Application'. And in the main panel select 'Single View Application'. Then go ahead and click 'Next' as shown below.

On the following window you will be asked to name your application. Name it what ever you like. Under the Language section select Swift from the drop down menu. Make sure that the build is for iPhone in the 'Devices' menu, and then click 'Next' again.

You'll then be prompted to choose a location to house your project and will be given the option to place the project under source control. If you know how to use git for source control, then by all means use it! Otherwise, uncheck the box if it is already checked and click 'Create' to start up the project.

Displaying the Available Services
In our Swift application, we want to present the user with all the available services that our supply shop has to offer. Our custom API provides an interface to our inventory of Plumbing Tools as well as our inventory of Copper Pipes and Fittings. To present these options to the end user we are going to use a table view. So let's jump in. In the navigator panel (the left panel) of Xcode, locate and select the file named Main.storyboard.

Once the main storyboard loads, scroll to the pre-loaded Single View Controller and select it. When properly selected its border will turn blue, as seen here:

As we are going to use a table view, we can safely discard this default view controller. Delete the single View Controller by pressing the delete key on your keyboard, while the controller is selected. In the Utilities Panel on the right side of the Xcode interface, locate the Object Library submenu. Select a Table View Controller, and drag and drop it inside the main storyboard.

While the new controller is selected, point your mouse toward Xcode's menu bar and select: Editor->Embed In->Navigation Controller. This embeds our selected Table View Controller into, you guessed it, a Navigation Controller.



A Navigation Controller is a stack for managing the presentation order of our view controllers. Select the Table View situated inside the Table View Controller, and then select the Attributes Inspector from the Utilities Panel. Locate the 'Content' field and select 'Static Cells' from its drop down menu.


You should see three cells appear inside the Table View. We only need two such cells, as this is where the user will be presented with the option to browse either the Plumbing Tools inventory or the Copper Pipes and Fittings inventory. Delete the bottom cell by first selecting it, and then pressing the delete key on your keyboard. Now let's name our two primary interfaces. For each of the two remaining cells, select the cell, and then locate the 'Style' field in the Attributes Inspector panel. From the 'Style' drop down menu select 'Basic'.


Both table view cells should now display a label that reads 'Title'. Two clicks in rapid succession on a label will place it into edit mode. Modify the titles so that they read from top to bottom, 'Plumbing Tools' and 'Copper Pipes and Fittings', respectively.

In order for the application to run, we need to specify the initial view controller that we want to load when the application first boots up. In the main storyboard, select the Navigation Controller. Then, in the Attributes Inspector menu, locate the check box that reads, 'Is Initial View Controller' and select it as shown below:

In the top left corner of Xcode make sure that the active scheme is set, and click the play button to build and run the application. Once the iOS simulator starts up, your app should look like this:

This project can be found on GitHub.

Success! We've built the primary view that will be presented to the end user when they open our iOS application. In part two of this segment, we'll begin building our data models. You can find part two in the tutorial on building the Swift client at the link.

Index
Introduction
Introduction and Overview: From the Back End API to the End User Application

The Web API
Building a RESTful API in PHP, Part 1
Building a RESTful API in PHP, Part 2

The Swift Client App
Networking in Swift: Building the Swift Client, Part 1
Networking in Swift: Building the Swift Client, Part 2
Networking in Swift: Building the Swift Client, Part 3
Networking in Swift: Building the Swift Client, Part 4
Networking in Swift: Building the Swift Client, Part 5

This tutorial was authored by Stefan Agapie, a Senior iOS Software Engineer, and adapted for the present piece.

Tutorial: A Simple iOS Stopwatch App in Swift

In this tutorial, we will create a single view iOS application using the Swift programming language. The tutorial will provide some insight into basic usage of the Apple Xcode integrated programming environment, as well as the model/view/controller software architectural pattern. Our target audience are people who have some prior experience in application development and programming but who are relatively new to Xcode and iOS development. The project goal is to build a simple iOS stopwatch-style timer application designed for iPhone using Swift.

The app will contain two labels (one for our title and one for our numeric timer display), and two buttons (a start/stop button, and a reset button). We will first lay out our main view, which will contain these elements and then use the interface builder (i.e. storyboard) to hook our view into the controller (IBOutlets and IBActions). Finally, we will turn to the business logic of the app. In the end, we will have two imports and a view controller. We will add three methods to the view controller class: two actions methods and one helper method. The tutorial will be broken down into a series of just over thirty steps with screen caps to provide a quick visual aid.

The first thing you'll need to do, if you haven't already, is download the latest version of Xcode 6 (currently in beta as of this writing). If you are completely new to Xcode, you may find it difficult to navigate the interface. There are tons of great guides to Xcode that can be found online such as this one.

On initial startup, Xcode will present you with its ‘Welcome’ screen and offer several options. Select the “Create a New Xcode Project” panel from the window (see figure 1). If it does not present you with this screen, select File->New->Project from the menu bar.

Figure 1
On the following screen, select “Single View Application” and press the “Next” button (see figure 2).

Figure 2

Next, choose the options for your new project (see figure 3) and fill in the necessary fields as you wish, ex. project and organization names, and select “iPhone” as the device, since we are creating an iPhone app.

Figure 3
The following screen will then prompt you to provide a destination directory for your project. I like to keep current projects in a folder on my Desktop. There is also an option on the bottom of the screen to place your project under source control. If you don’t know what source control is or how to use it, then simply uncheck this box. (However, it is highly recommended that you invest some time learning about source control systems such as git.) Click “Next” once you have made your selections.

Your project should have opened to a screen similar to the one in figure 4.

Figure 4
From the device dropdown menu, located in the upper left corner, select iPhone 5s (notice also the other options that could have been selected here if we were planning to create a different app). See figure 5.

Figure 5

Now that we have our project’s initial setup completed, let’s get down to business! From the Project Navigator, select the Main.storyboard file. See figure 6.

Figure 6
In the Storyboard, select any view, then go to the File Inspector in Xcode’s right panel. Uncheck “Use Size Classes”, and you will be asked to keep size class data for: iPhone/iPad. Then click the “Disable Size Classes” button. Doing this will make the storyboard’s view automatically size with the selected device. See figure 7.

Figure 7
In the top left corner of Xcode, locate the “Play” button and press it to build and run your project for the first time. See figure 8. Upon a successful first launch of the project, you should see something like the image in figure 9, an iOS simulator. If you get any errors and the project does not build correctly, read the error report(s) carefully and see if you can troubleshoot the problem.


From the Object Library toward the bottom of the right panel in Xcode, select Label (figure 10) and then drag and drop it at the left style guide, but vertically centered into your single storyboard scene/view. See figure 11. The style guides are temporary visual placement lines that appear as you position view elements into your scene. This label will eventually provide the numeric display of our running stopwatch.

Figure 10

Figure 11

In order to make the label wider, we will select and drag the trailing edge of our Label element to the right of your scene until it meets the right most style guide. See figure 12.

Figure 12
From the Attribute Inspector panel in the right panel of Xcode, toggle the text alignment to center so our text appears in the middle of the label. See figure 13.

Figure 13
Go back to the object library and place two Buttons equally spaced apart about midway between the label and the bottom of our scene. See figure 14. These will function as our reset button and our start/stop button on the stopwatch.

Figure 14

From the Size Inspector in Xcode’s right panel change, the width of each button to 60 points. See figure 14.1.

Figure 14.1
Run your project to see what it looks like. Again, if you get any errors and the project does not build correctly, read the error report(s) carefully and see if you can troubleshoot the problem.

Select the Assistant Editor from the top right corner of Xcode to display the storyboard and associated Swift file side-by-side. Now hide both the Navigator and Utilities panels by clicking on the appropriate panel buttons in the top right corner of Xcode. See figure 15.
Figure 15
Now let’s connect up our storyboard elements to our controller, which will connect our interface to our code, that way all the relevant interface elements can communicate events to the controller.

Place your mouse pointer over the Label; then press and hold the control button while clicking and holding down your mouse button as you pan your mouse pointer across the screen and into the right side of Xcode where your Swift file is located. You should see a blue line follow your mouse pointer. See figure 16.

Figure 16

Once in the class area, as shown, release the mouse button and the control as well.  You will see a dialogue box prompting you for the name of your outlet. Name it ‘numericDisplay’. See figure 17. This will add the necessary outlet code to your Swift controller class. An outlet is a reference pointer to an element inside your storyboard. Creating outlets allows for easy access to objects in your storyboard. After naming the outlet, your screen should look like figure 18.

Figure 17


Figure 18

Go ahead and connect the buttons as outlets as well. Name the left button ‘resetButton’ and the right button ‘startStopButton’.

In a similar fashion to the newly created outlets, we will now create action methods for each button. This time we will drag the blue line toward the bottom of the file but inside the class body. Name the left button resetButtonPressed and startStopButtonPressed for the right button. In the dialog box, make sure you select 'Action' from the Connection drop down menu. See figure 19. Action methods are the functions in your class that get messaged/called when the button that is associated with the connected method is triggered by an event. An event is initiated when the user interacts with any of your buttons.
Figure 19
Your interface should now look like the screencap in figure 20.

Figure 20

To accurately update our numeric display label, we need to tie it in to a mechanism that will update at very precise time intervals. To access this functionality, we need to import the appropriate class library. From Xcode’s menu bar, select the Window tab drop down menu then select Documentation and API Reference. See figure 21. The documentation search window should appear. In the search bar type CADisplayLink and locate the appropriate documentation. Read through the documentation and familiarize your self with the CADisplayLink class. This class is very useful when your code needs precise timing control.

Figure 21

Notice that the CADisplayLink requires the QuartzCore framework. A framework is a set of classes with predefined functionality so that you don’t have to reinvent the wheel; it's code packaged for re-use, so use it!  With Swift you no longer need to define an interface(.h) and an implementatin(.m) file to define a class which is nice. Also, when importing different frameworks into your project you no longer have to go Xcode's build setting and explicitly add that framework; it automatically loads when you use the keyword import followed by the desired framework like so: import {SomeFramework} but without the curly braces.  And my favorite addition is the fact that semicolons are no longer required! WhooHoo! There are also a ton of outher features of Swift that I have yet to discover. In your ViewController.swift file add the line of code importing QuartzCore:


Importing a framework into your file gives you access to its classes and functionality. In your ViewController class, add the following var properties just below the @IBOutlet properties. Add the code in lines 5 and 6 below:



‘var’ is short for variable and displayLink is our object pointer of type CADisplayLink. We use this pointer to hold a strong reference to an instantiated CADisplayLink object that we will create in a few moments. We want a strong reference to an instance of CADisplayLink to be able to access it throughout the various parts of our class. We also define a lastDisplayLinkTimeStamp of type CFTimeInterval. This variable will store a running tally of the total elapsed time.

Now let’s set the default view element values for our numeric display label and our two buttons. Add the code below to our viewDidLoad() method:



In your viewDidLoad() method now add the lines of code from the snippet below:



The first new line of code above (line 16) creates an instance of a CADisplayLink object, and assigns this class, i.e. “self,” as the target for messages that inform us of a display refresh rate update. This occurs in the first parameter of the CADisplayLink(<first parameter>, <second parameter>) method call. In the second parameter we pass the name of the method that we would like to be called when there is a display refresh rate update. We will define this method shortly. The second new line of code (line 9) ensures that the display link does not begin its updates until we press the Start button in our user interface. The third new line of code (line 12) schedules the display link to begin sending notifications to our instance method about display refresh rate updates. The fourth new line of code (line 15) simply initializes our elapsed time running tally variable.

The next step is to define the method that will be called when the display link has an update. Add this code to the bottom of the viewController.swift class, i.e. inside the final class curly brace:



Now for the logic—we are almost there! In the newly created function add the following lines of code:



The first new line of code (line 3) updates our running tally. The second (line 6) formats our running tally into a string that only shows the last two significant digits. The third (line 9) updates our numeric display label.

Let’s move over to the startStopButtonPressed(…) method. This method is called anytime the user presses the button situated to the right in our stop watch scene. When this button is pressed we want to toggle the display link’s “paused” Boolean value. Add the following line of code to this method.



At this point you can run your project and press the start button to see your stop watch in action! Woohoo! Again, if you get any errors and the project does not build correctly, read the error message(s) carefully and see if you can troubleshoot the problem.

Let’s shift our focus to the Reset button. What do you think this button should logically do? It should pause the display link to prevent it from  sending us any further updates, then set the numeric display label to zero, and update our Start/Stop button state. In the resetButtonPressed(…) method add the following lines of code:



Let’s now complete our code project by adding the last few lines of code for our Start/Stop button. In startStopButtonPressed(…) add the code in bold:



Our label text string will not be modified if our code does not fall through our first conditional if statement. If, however, the display link is paused, then we check the running display link tally. If this tally is greater than zero, then we display the resume button since pressing this button again will not reset our running tally. If it’s equal to zero then we display the start text. The button text is set in the last line of code.

Your final ViewController file should look like this.

Finally, let’s add a title label. Go back to the main storyboard. From the object list at the bottom of the File Inspector in the right pane of Xcode, drag a Label to the center/top of your main view. Size it as you like, and provide it with a text title such as “Stopwatch”.  The final product should look something like the three screencaps below, showing the default, running and paused states:

Default State



Running

Paused

And that concludes our simple Stopwatch app tutorial! We leave you off with a question for further reflection.  Notice that our chronometer output is not formatted for standard time. Our implementation increments our minor units, values to the right of the decimal point, from .00 to .99 before increasing the the major unit by one. Although this is a correct unit of measurement, it is not in the ubiquitous standard time format. In the standard format the minor unit, a.k.a the second, is incremented from .00 to .59 before the next major unit, i.e. a minute, is increased by one. Since there are many ways to implement this, some being more efficient than others, we leave this consideration to the reader as an exercise. Post your own solution below. And, as always, feedback, suggestions, and angry tirades are welcome in the comments.

This project can be found on GitHub.

The Stopwatch app and tutorial was originally authored by Stefan Agapie, a Senior iOS Software Engineer, and then adapted for the present piece.
